EV Charger Installation Nashville | Expert Electrical Contractors
⚡ Certified EVSE Installer ’95 Tesla Certified ’95 License #75168
Level 2 EV Charging Stations for Davidson and Williamson County Homes
When you buy an electric vehicle in Nashville, the dealership often hands you a Level 1 charging cord and tells you to “just plug it in.” But overnight charging on a standard 120V outlet only gives you about 3 to 5 miles of range per hour. If you commute from Franklin to Downtown Nashville every day, that isn’t enough.
You need a dedicated Level 2 home charger setup in Nashville, TN. Our licensed electricians install Tesla Wall Connectors, ChargePoint Home Flex units, and NEMA 14-50 receptacles for universal EVSE cords. We don’t just bolt a box to your garage wall; we perform strict NEC load calculations to ensure your home’s electrical panel can safely handle a continuous 48-amp draw without tripping your main breaker.
Complete EV Charging Solutions

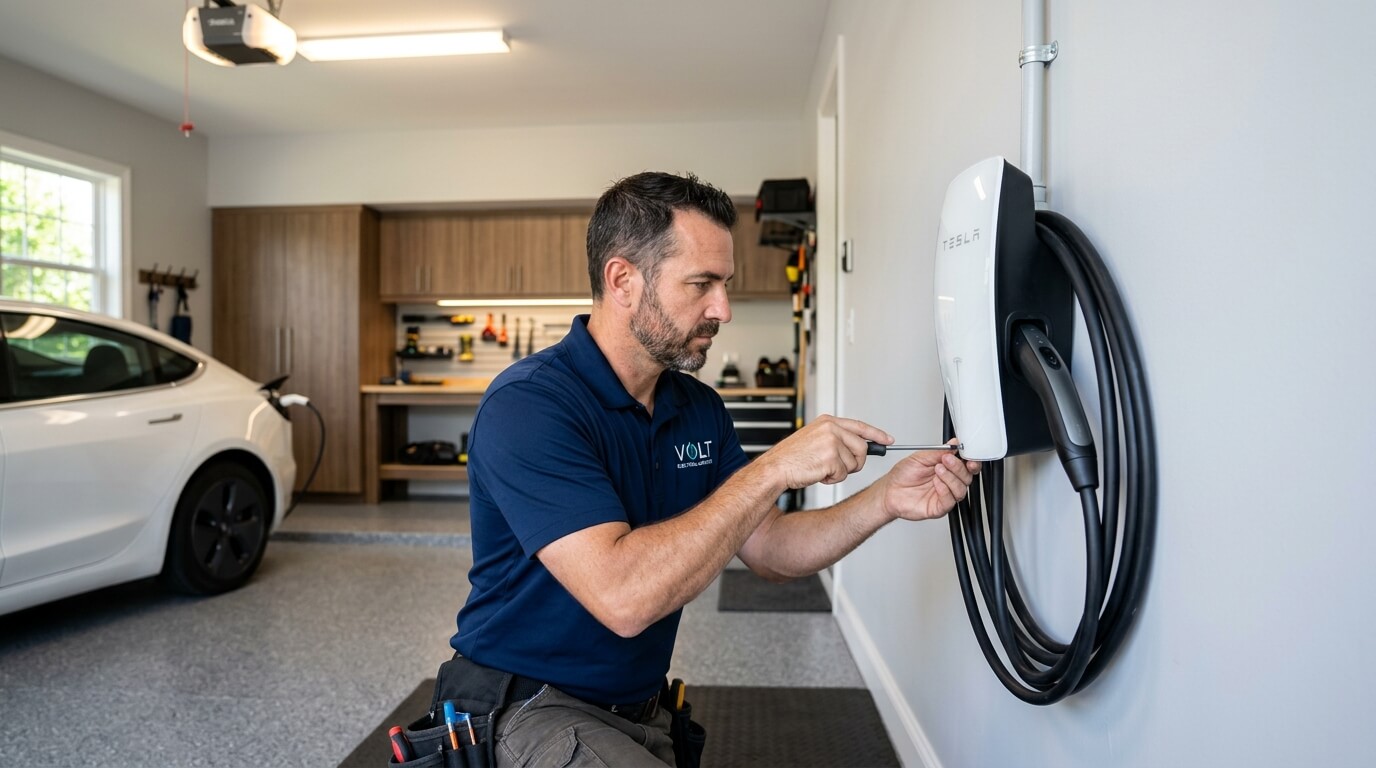

Turn your garage into a personal fueling station. We install dedicated 60-amp circuits for maximum 48-amp charging speeds on Gen 3 and Gen 4 connectors.
Attract electric car drivers to your business, or power up your non-Tesla at home. We install ChargePoint, JuiceBox, and all standard J1772 smart chargers.
Upgrading to a faster charging cord? We install industrial-grade Hubbell or Bryant 240V outlets specifically rated for the extreme thermal load of EV charging.
Panel Upgrades & Load Management
If your home only has 100 or 150-amp service, we can perform a heavy-up 200-amp panel upgrade. Alternatively, we can install a smart load-management device (like a DCC-9) that automatically pauses your EV charging if your HVAC and electric oven are running simultaneously, keeping you safely under your panel’s limit without a costly utility upgrade.
The Danger of Cheap NEMA 14-50 Outlets
When homeowners request a 240V outlet for their EV mobile connector, many unlicensed handymen buy a $12 residential-grade outlet from a big box store. Those outlets are designed for electric dryers’97which run for 45 minutes at a time. An electric vehicle pulls maximum amperage for 8 to 10 continuous hours. A cheap residential outlet cannot handle that thermal load and will melt, posing a severe fire risk. At Bates Electric, we exclusively install industrial-grade Hubbell or Bryant receptacles for all EV charging circuits, which are rated for extreme continuous thermal loads.
Installation Options: Hardwired vs. Plug-in
Which setup is right for your Nashville garage? Here is the breakdown:
| Setup Type | Max Charging Speed | Required Circuit | The Tradeoff |
|---|---|---|---|
| Hardwired (Tesla Wall Connector) | Up to 48 Amps (44 miles/hour) | 60-Amp Dedicated Circuit | Fastest home charging possible. Safer because there are no plug connections to loosen over time. However, the unit is permanently attached to your wall and cannot be taken on road trips. |
| Plug-in (NEMA 14-50 Outlet) | Up to 32 Amps (30 miles/hour) | 50-Amp Dedicated Circuit | Highly versatile. You can unplug the mobile connector and put it in your trunk for travel. However, charging is slower, and the plug connection point introduces a slight point of thermal wear over years of daily unplugging. |
When You Shouldn’t Call Us
If you live in a multi-story condo in The Gulch and share a communal parking garage with 40 other residents, we generally cannot install an individual EV charger for your specific parking spot, as the building’s main electrical room is not tied to your personal meter. You must coordinate EV charging directly with your HOA or building management company.
However, if you own a single-family home or a townhome with a privately metered garage in Davidson or Williamson county, we can pull the permits and execute the installation safely.
Why Choose Bates Electric as Your Charging Station Contractor
⚡ Certified EVSE & Home Charger Specialists
We’re not general electricians dabbling in electric vehicle charging. Our team holds specialized certifications for EVSE equipment and stays current with evolving charging technologies. We understand amp ratings, charging speeds, and exactly how to size a circuit for continuous maximum thermal load safely.
📋 Complete Permit Service
Electric vehicle charging station permits are strictly required in Metro Nashville and Williamson County, and we handle everything. From pulling permits with local building departments to scheduling inspections and ensuring code compliance, you don’t lift a finger. We know exactly what county inspectors look for.
Frequently Asked Questions
How much does EV charger installation cost in Nashville?
Do I need to upgrade my electrical panel for an EV charger?
It depends on your current service capacity and existing appliances. If your home has a 200-amp panel, you are almost always cleared to add a 50-amp or 60-amp EV circuit.
If you have a 100-amp panel and your home uses an electric oven, electric dryer, and electric HVAC, adding an EV charger will likely overload your main breaker. In that case, we can either upgrade you to a 200-amp panel or install a smart load-management device that pauses car charging while your major appliances are running.
Does Nashville Electric Service (NES) offer rebates for EV chargers?

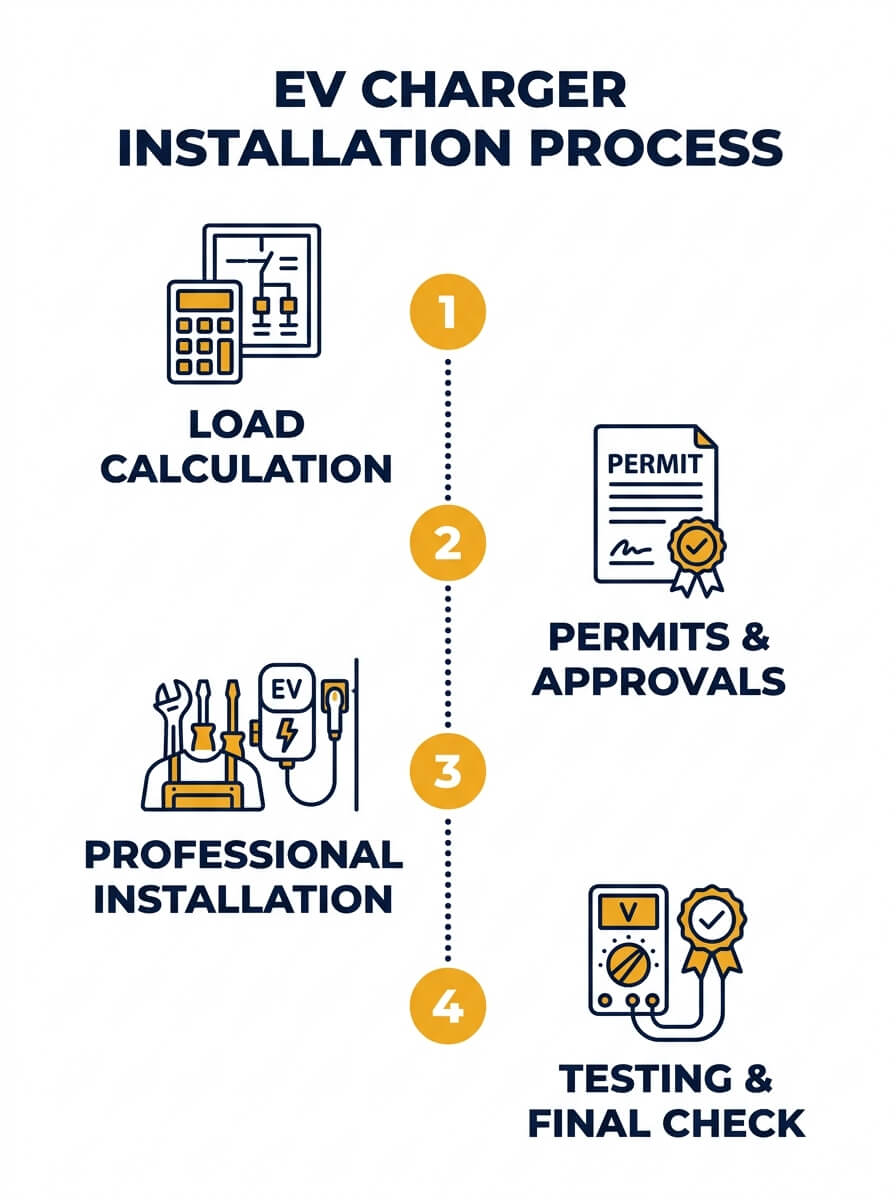

Our Installation Process
- Load Calculation: We don’t guess. We perform a strict National Electrical Code (NEC) load calculation to ensure your panel can safely handle the continuous amperage of an electric vehicle.
- Permits & Approvals: We handle the Metro Nashville or Williamson County electrical permits required for 240-volt dedicated circuits.
- Professional Installation: Our licensed electricians arrive with proper copper wiring, commercial-grade receptacles, and the correct breakers. We mount the charger, run the conduit, and secure the circuit.
- Testing & Final Check: We test the voltage and phase, ensure the unit powers up, and schedule the final municipal inspection so your home remains 100% code compliant.
Serving the Nashville Metro Area
Our EV charger installation teams dispatch daily across Davidson and Williamson counties.
High volume of Tesla Wall Connector installations in new residential builds and established neighborhoods.
Integrating high-amperage Level 2 chargers into older estate homes, often alongside required panel upgrades.
Navigating historic properties and detached garages, pulling new conduit from main house panels to alleyway parking spots.
Rapid deployment of ChargePoint and NEMA 14-50 setups for new EV owners across Wilson and eastern Davidson county.
Ready to Schedule Your EV Installation?
Get expert electrical services from licensed contractors who deliver quality solutions. Free Virtual Quote, transparent pricing, professional results you can count on.
⚡ Same-Day Available ’95 💳 Financing Options ’95 ✓ Licensed & Insured TN #75168
}
